Assigning Sensors

To begin the process of assigning sensors, please ensure you have internet access and bluetooth connectivity enabled on your iPad or iPhone, and that your sensors are placed next to your iPad or iPhone.

Step 1

Open the Etiscope app and login to your account with your User ID email address and password. If you do not know your password you can reset your password with the ‘reset password’ link.

Step 2

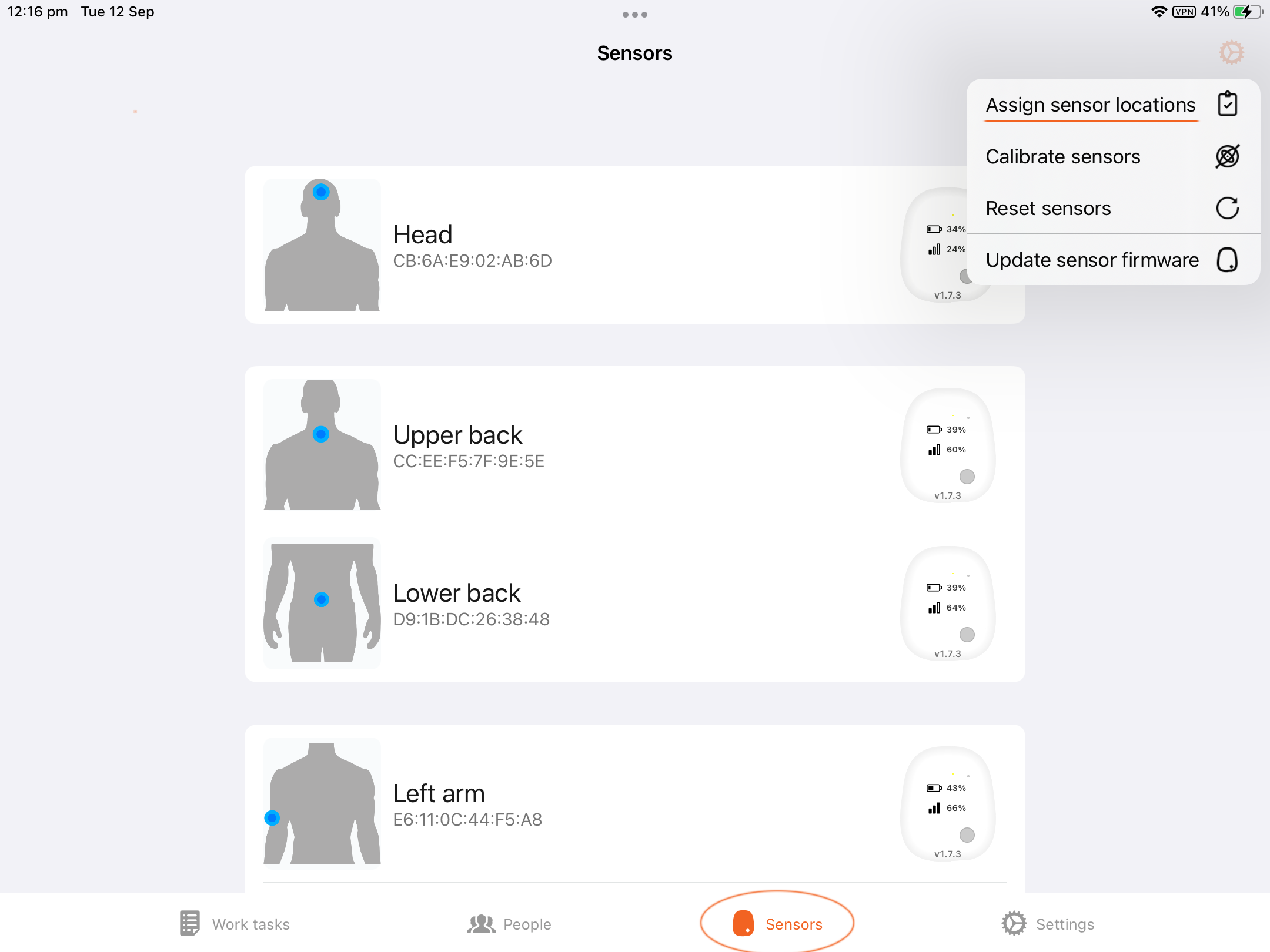

Once the app is open, select the ‘Sensors’ tab at the bottom of the screen.

Then click the orange settings icon at the top right corner of the screen and select ‘Assign sensor locations’.

Step 3

The app will now locate the nearest Etiscope sensors.

The sensors will display a blue light once they connect to the Etiscope app.

Once the app has identified 5 sensors, press ‘Continue’.

Step 4

It is now time to assign the sensors to the correct body region.

Each of your sensors will have a label on – press the grey button on the correct sensor to match with the app. There are five body regions - Head, Upper Back, Lower Back, and Left and Right arm.

Repeat the process, until each sensor has been assigned to a body region.

The sensors will display a green light once they have been assigned.
